stainless steel sintered filter element

SS316 Porous Filter
Absolute Rate :Cleanable
Available Sizes:
Outer Diameter: 60mm(2.36")
Length:
254mm(10")
508mm(20")
762mm(30")
1016mm(40")
Micron Rating: 0.22-100um

Send Inquiry Download

Product Description

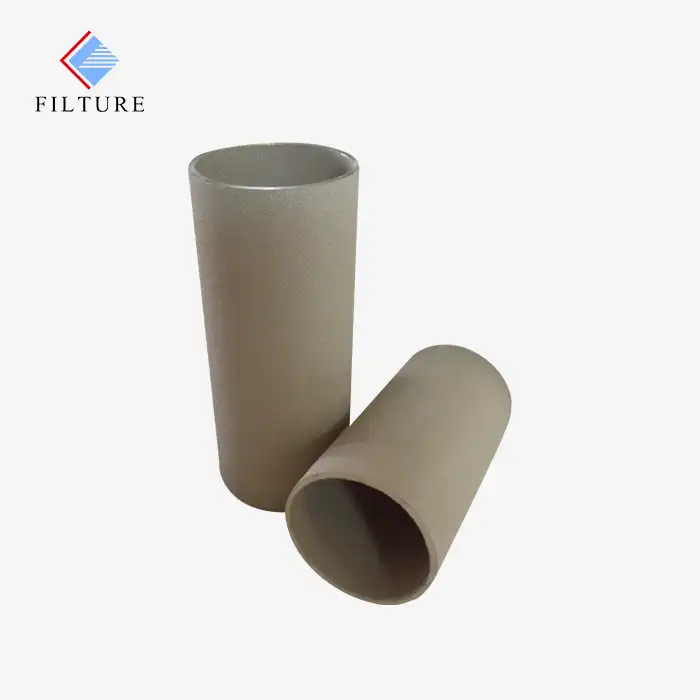

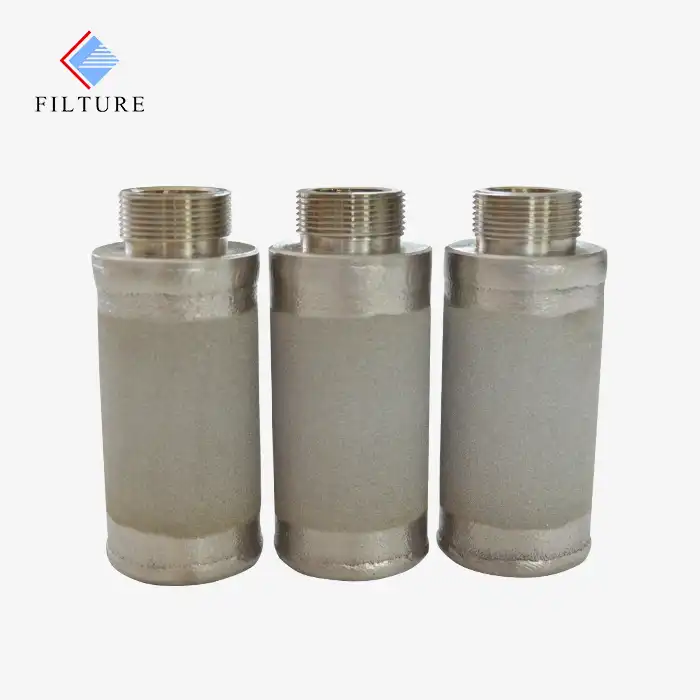

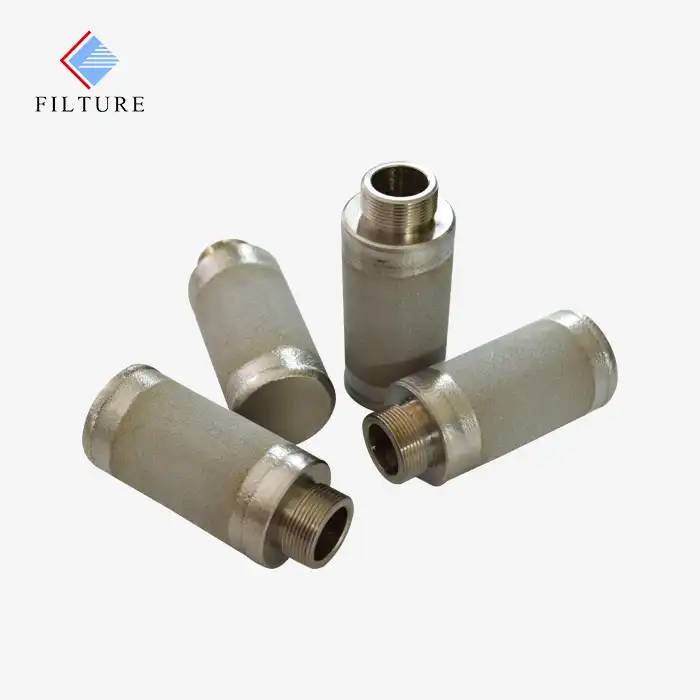

Stainless Steel Sintered Filter Element

Are you looking for a reliable filtration solution that excels in extreme environments? Our stainless steel sintered filter element is designed to deliver outstanding performance in high-temperature, high-pressure, and corrosive conditions. With superior durability, high filtration efficiency, and excellent structural stability, these filter elements are ideal for demanding industrial applications.

Technical Specifications of Stainless Steel Sintered Filter Element

To help you quickly find the right product for your needs, we’ve provided a detailed table of key specifications:

Parameter	Specification
Material	Stainless Steel 316L, 304, Titanium, Nickel
Pore Size Range	0.2 – 100 μm
Filtration Efficiency	Up to 99.99%
Operating Temperature Range	−20°C to 600°C
Maximum Operating Pressure	Up to 5 MPa
Corrosion Resistance	Excellent (Suitable for acid, alkali, and saline)
Custom Sizes	Available upon request

Key Features of Stainless Steel Sintered Filter Element

Tall Porosity and Penetrability: The sintered metal structure offers uniform pore dissemination, guaranteeing proficient filtration and tall breathability.
Exceptional Solidness: Made from premium-grade stainless steel, these channel components are safe to tall temperatures, weights, and corrosion.
Easy Cleaning and Reuse: These channels can be cleaned utilizing different strategies, counting backwashing and ultrasonic cleaning, making them cost-effective and long-lasting.
Customizable Plan: Accessible in different sizes, shapes, and pore evaluations to meet particular operational necessities.

Applications of Stainless Steel Sintered Filter Element

Our stainless steel sintered filter elements are widely used across multiple industries due to their versatility and high performance:

Petrochemical Industry: Effective in gas and liquid filtration, ensuring purity in petrochemical processes.
Pharmaceutical Sector: Used for sterile filtration and gas separation in cleanrooms and medical devices.
Food and Beverage Industry: Ideal for filtering liquids, including beverages and edible oils.
Gas Filtration: Suitable for air, steam, and compressed gas filtration in high-temperature environments.
Aerospace: Provides reliable filtration in high-stress environments, ensuring the integrity of critical systems.

Chemical Industry

Hydrogen production equipment

Chemical Industry

Aerospace Industry

Manufacturing Process

The product is created through a specialized sintering process that fuses fine metal powders at high temperatures, resulting in a filter with consistent porosity and structural integrity. The sintered structure ensures superior strength and longevity, making it ideal for high-demand applications.

Process Highlights:

Multi-Layer Structure: Some variants feature multi-layer construction for enhanced filtration efficiency and strength.

Custom Molding: Tailored to meet specific filtration needs, offering flexibility in pore sizes, materials, and dimensions.

Raw material preparation

Titanium, Stainless Steel powder

Metal Mesh

Titanium and Stainless Steel metal fibers

Molding process

Pressing

High temperature sintering

Welding

Precision machining CNC

Precision machining laser cutting

Bubble point test

Corrosion test Salt spray test

Metallographic microscope

Mechanical testing

Customization Options

We understand that each application is unique. That’s why we offer flexible customization options, including:

Materials: Stainless steel (316L, 304), titanium, nickel, and more.
Sizes and Shapes: Custom dimensions to fit your specific equipment.
Pore Sizes: Tailored pore size ranges to meet your filtration needs.

Quality Assurance

We adhere to stringent quality control processes to ensure that each product meets the highest standards. Our products undergo:

Rigorous Testing: Each batch is tested for pore size distribution, filtration efficiency, and mechanical strength.
Certifications: Our products comply with international standards, including ISO 9001 and CE certifications.
Consistent Quality: We maintain strict process control to deliver consistent, high-quality products every time.
